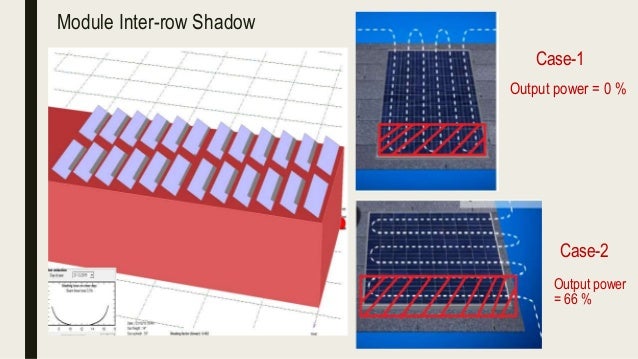

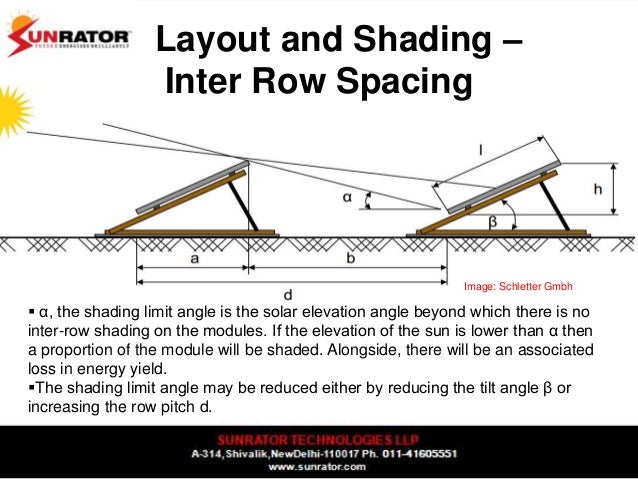

Improper row spacing cause shading by another row during some time in a year. This is the correct way to review ground mount layouts even for single axis trackers when accounting for maximum tilt angles as this comment suggests. It covers the nabcep competency for calculating the inter row spacing of solar pv sub arrays configured in a saw tooth arrangement on a flat roof. Spacing illustrations are based upon mounting solar panels measuring 1675x1001x31 using two frames secured directly to a completely flat roof 0 in two parallel rows both facing due south.

B width of the solar module panel. Keep in mind that the sun travels in an arch across the sky so both the sun s altitude position and the azimuth must be accounted for when determining. Rbi solar has released its solar shading calculation app that helps users to determine the post to post distance and inter row spacing in the field using smartphones and tablets. Solar wire size calculator.

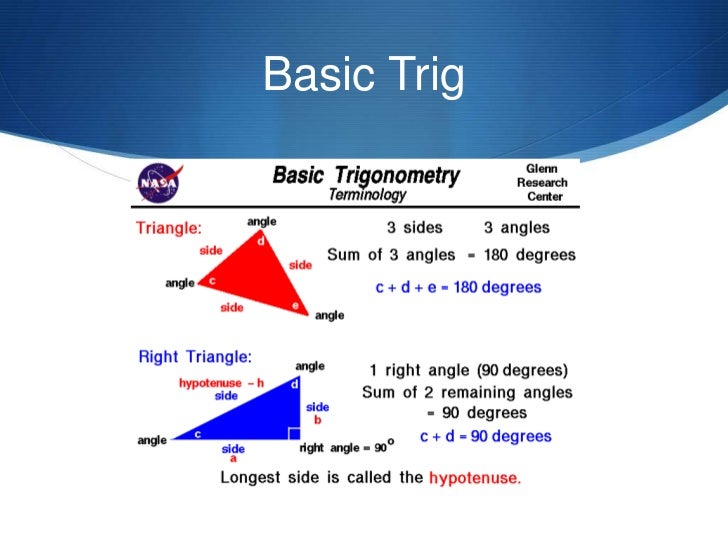

This calculation is open for any place tilting angle and time duration. This is a short instructional video aimed at nabcep pv entry level students and techs. Shadow calculations for row spacing when designing a solar system there is often the need to understand how long a shadow will be so you can properly plan for row spacing between solar modules. The app is.

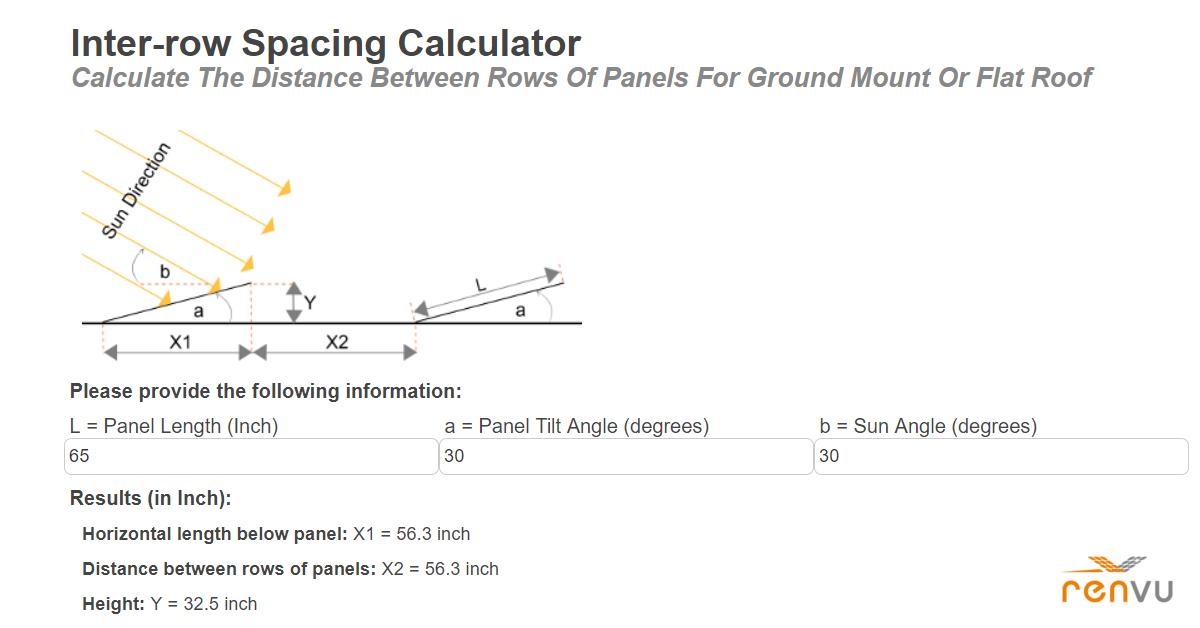

Rbi solar is a market leader in the design engineering manufacturing and installation of fixed tilt tracker canopy and roof mounted solar mounting systems. Contact us for accurate row spacing calculations for different sizes of panels and locations. Solar collector spacing calculator this online tool provides the you with the minimum distance to next solar collector and solar water heater system array to avoid inter row shading. To make a proper design we need to calculate the actual row spacing of that place.

The app should be used for estimation purposes only as other conditions such as grading of installation location will further affect optimal positioning. A length of the solar module panel. About rbi solar inc. This inter row spacing app allows you to calculate the distance to space solar panels by calculating the sun angle at any date time and geographic coordinate.
