Solar Panel Spacing Equation

The equation looks like this.

Solar panel spacing equation.

The sharp module referred to in steps 5 and 6 of this guide for example is 39 1 wide by 64 6 long. I can use a 5 amp or larger charge controller with this panel to charge the battery. As a rule of thumb solar panels should be more vertical during winter to gain most of the low winter sun and more tilted during summer to maximize the output. How can we calculate the optimum tilt angle of a solar panel for maximum efficiency.

The shading distance is the minimum distance allowed between rows. Spacing illustrations are based upon mounting solar panels measuring 1675x1001x31 using two frames secured directly to a completely flat roof 0 in two parallel rows both facing due south. The 60 watt solar panel has a short circuit amp rating isc of 3 86 amps. Contact us for accurate row spacing calculations for different sizes of panels and locations.

The panels in each row tilt maximum 55 55 towards the sun at sunrise and sunset. Thus dictating minimum row spacing and ultimately the total number of rows available over a given space. Look at the 60 watt panel top of the page. We have a 60 watt solar panel that has an imp amps maximum power point of 3 49.

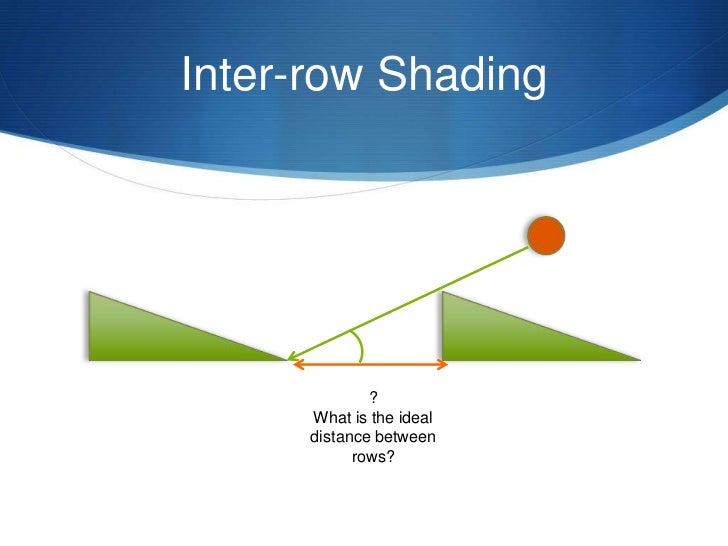

Calculating the optimal solar panel angle. When designing a solar system there is often the need to understand how long a shadow will be so you can properly plan for row spacing between solar modules. Now to find the spacing between the arrays we will divide the height difference of the panel edges by the tangent of the solar elevation and then correct for the azimuth by multiplying this spacing by the cosine of the azimuth correction and rounding our answer up to the nearest whole inch. Initial row length modules x module width for a landscape orientation sideways use the module length spec instead.

How to calculate spacing between two solar panels. 2 67 0 8 3 34 amps. Type 2 or more characters for results. To calculate shading distance and therefore row spacing the solar energy handbooksuggests using the equation d d t sin h d sin.

Keep in mind that the sun travels in an arch across the sky so both the sun s altitude position and the azimuth must be accounted for when determining the length of a shadow. Asked 21st dec 2017.
