Select to offset the flange from the sheet metal body.

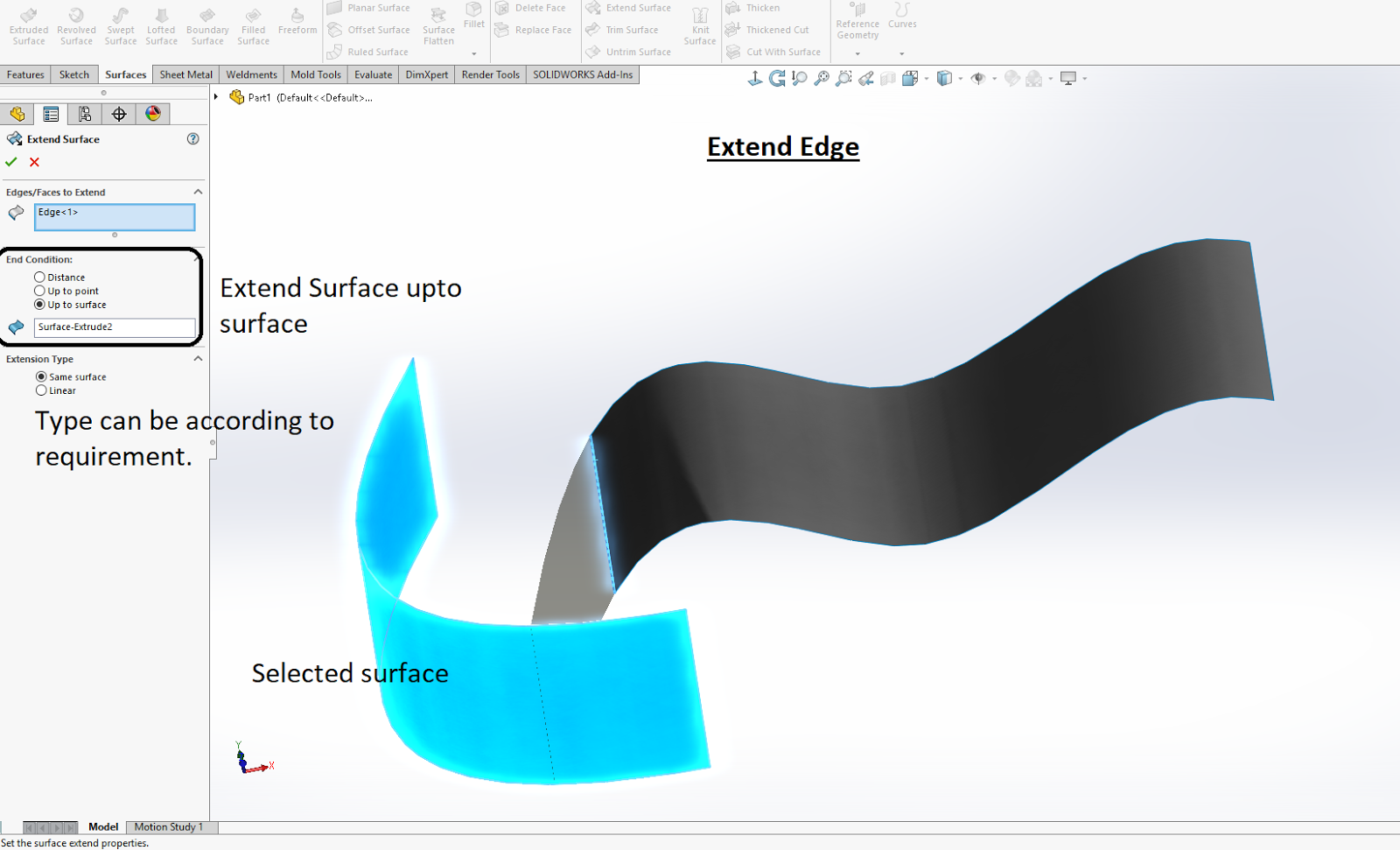

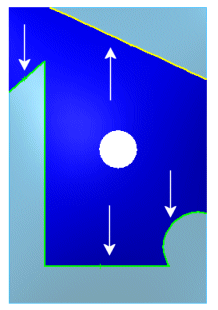

Solidworks sheet metal extend edge.
Solidworks for sheetmetal 1.

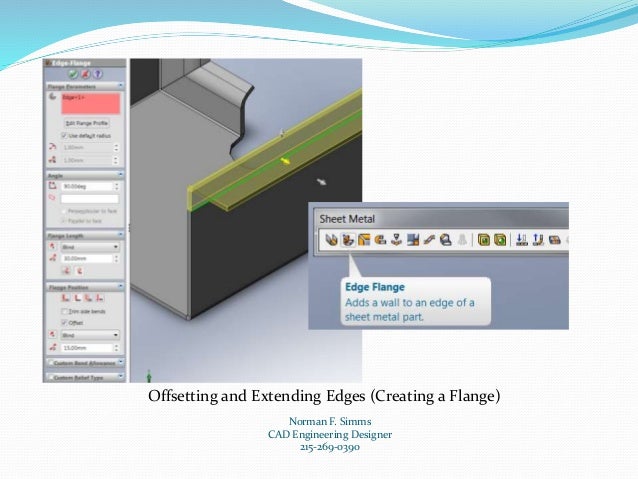

Edge flange see figure 3 can be used to add an attached wall to any sheet metal body.
How to use solidworks edge flange solidworks sheet metal tutorial 2.
Sheet metal teaches you how to build sheet metal parts using solidworks mechanical design automation software.
You might also like.
The edges must be parallel of the same thickness part of the sheet metal part base and must belong to different bodies.
The condition of application of edge flange is that the edges should be linear.
Create a new sketch on the front plane.
2 days to locate an authorized training center near you click here.
However in some circumstances when the design requires certain types of geometry you can use non sheet metal feature tools then insert bends or convert the part to sheet metal.
The edge flange feature helps to add flanges to selected edge or more edges.
The up to edge and merge option calculates the angle between the edges automatically.
Start a new inch part right click on any toolbar and check the sheet metal tool for the sheetmetal toolbar to be available.
There are specific sheet metal features you can use to create sheet metal bodies quickly.
This same tool can be used to make a flat piece of sheet metal that one would use to add edge flanges and other useful sheet metal features.
The option is available if you select a single edge under flange parameters.
In the base flange section you seen the very first step to make sheet metal design in solidworks cad software.
Sketch a 6 00 inch square rectangle that is centered on the ucs origin.
You can override the calculation to extend or shorten the connecting flange.
To merge bodies in a multibody sheet metal part select only one edge.
Options in basic sheet metal base flange tab.
